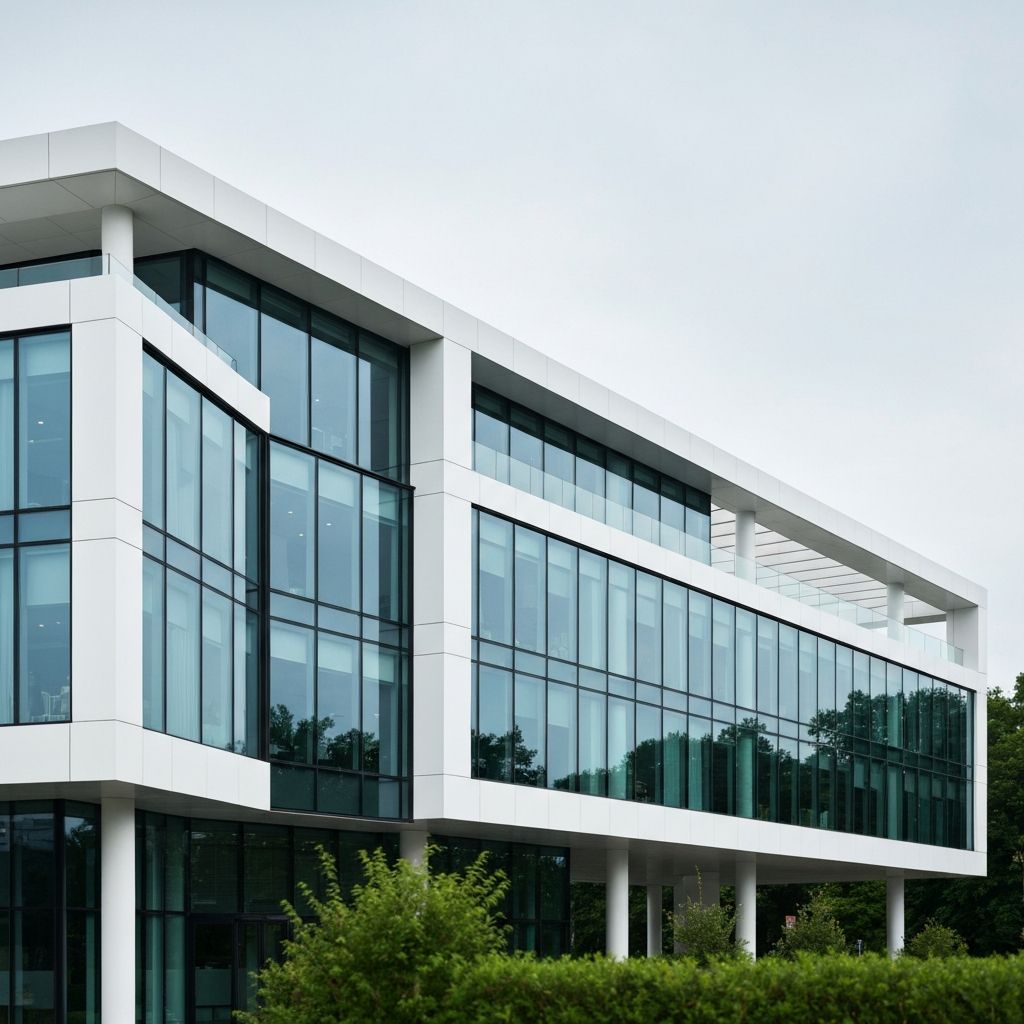

Sub-District Hospital, Nagar
Client: Medical and Health Department, RajasthanLocation: Nagar, District Deeg, RajasthanTimeline: 2024
BuildingsGeotechnical and SPT
Executive Summary
Structural design and detailed drawings, including soil investigation, for a B+G+3 Sub-District Hospital with approximately 15,550.80 sq m built-up area in Seismic Zone III.
Project Highlights
- B+G+3 Sub-District Hospital
- Approximately 15,550.80 sq m built-up area
- Located in Seismic Zone III
- Dynamic analysis using STAAD.Pro Connect Edition
- Soil investigation and SPT included
Scope of Work
- Soil investigation and SPT testing
- Structural design
- Structural detailed drawings
- Dynamic seismic analysis
Engineering Methodology
STAGE 1
Soil Investigation and SPT
STAGE 2
Structural Modelling
STAGE 3
Dynamic Analysis
STAGE 4
Design and Drawings
Standards & Codes Applied
NBCNational Building Code
IS 456RCC code of practice
IS 875Design loads for buildings
IS 1893Seismic design
IS 13920Ductile detailing
IS 2131Standard Penetration Test
Certified Deliverables
- Structural design
- Structural detailed drawings
- Dynamic analysis using STAAD.Pro
- SPT and soil investigation report
Project Outcome & Impact
Namotech delivered a complete, code-compliant structural design and detailed drawing set backed by soil investigation and Zone III dynamic analysis.
